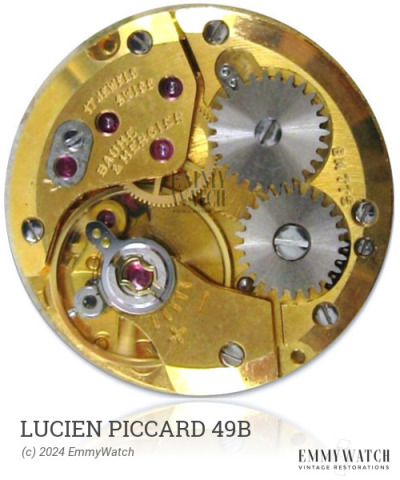

Lucien Piccard 49B
Ligne: 5.75'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 13.25 mm
Height: 3.1 mm
Hands: 0.99 x 0.49 mm
Base: Felsa 4036
The Lucien Piccard 49B watch movement features Girocap combined settings for the escapement wheel and an indirectly driven minute hand that allows for a large balance. This movement is a collaboration between various watch brands including Doxa, Ebel, Eberhard, Favre-Leuba, Girard-Perregaux, Juvenia, and Zodiac. It is uncertain who actually produced the equivalent calibers Felsa 4035 and 4036, as they are not listed in any other register. The specific differences between the 54 and 54.19 variants are not known. This movement offers functions such as manual wind backwinder and backwind. It was primarily used around 1965.
The Lucien Piccard 49B features the following functions:
- Manual wind backwinder
- Reverse Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.060 x 180 x 5.5 mm | GR3560 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
