Longines 510
Ligne: 6.25 x 10.5'''
Jewels: 15
Power Reserve: 30 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1922-
Size: 14 x 23.5 mm
Height: 3.3 mm
Hands: 1.06 x 0.55 mm
Base: Rolex 250

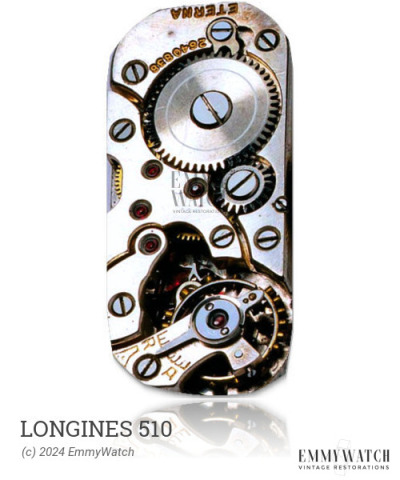

The Longines 510 watch movement is a manual-winding movement commonly utilized during the period from 1922 onwards. Manufactured by Aegler, this movement features a bimetallic screw balance and a Breguet hairspring. It is worth noting that the Longines 510 shares identical movements with the Gruen 833 and the Rolex 250, although specific details about its functions are not provided.
The Longines 510 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.105 x 360 x 10.5 mm | GR3271 | Manual | Buy mainspring |
| 1.00 x 0.100 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
