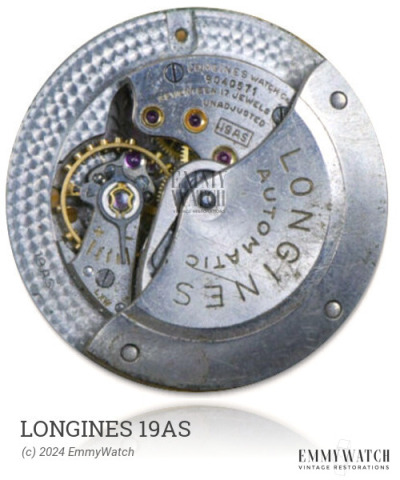

Longines 19AS
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 4.1 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Longines 19AS is a mechanical watch movement that was primarily used around 1970. It features an indirectly driven minute, which allows for a large balance and a low profile. Additionally, this movement offers several functions, including automatic winding, a sweep seconds hand, and a calendar with a quickset feature that can be activated by repeated pushing of the crown.
The Longines 19AS features the following functions:
- Automatic Winding
- Calendar
- Date: quickset by repeated pushing the crown
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.00 x 0.115 x 360 x 11.0 mm | GR2465X | Auto | Buy mainspring |
| 1.00 x 0.120 x 360 x 10.5 mm | GR2470X | Auto | Buy mainspring |
| 1.00 x 0.120 x 310 x 10.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
