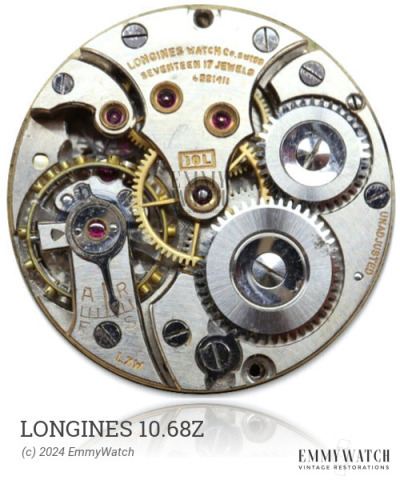

Longines 10.68Z
Ligne: 6.75 x 8'''
Jewels: 17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1943
Size: 15.3 x 18.2 mm
Hands: 1.10 x 0.60 x 0.18 mm
The Longines 10.68Z watch movement is a derivative of the Aurore-Villeret 120, Bulova 6AH, and FHF 120 movements. It is interchangeable with other movements mentioned in multiple registers. The design details of the Bulova movements suggest that they were derived from the Aurore-Villeret movements. The differences between the Aurore 123, 126, and 128 movements are not known. The Longines 10.68Z movement features manual winding and a sweep second function. It was widely used around 1943.
The Longines 10.68Z features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring | |
| 1.40 x 0.080 x 240 x 7.0 mm | GR3607 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| GIB/BOLT INCA 240X19 THICK | 400/1 | 180.19/INCA #11 | Buy part |
| JEWEL, INCA BALANCE 135X50X09 | 400/11 | 111.09/INCA#8 | Buy part |
| JEWEL, INCA UPPER CAP 120X27 | 400/7 | 121.11/INCA #5 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| LOWER INCA SETTING D160 H9 | 400/38 | 112.20.9 | Buy part |
| SCREW, INCA SHOCK .15X.50 | 400/809 | 150.21/INCA #14 | Buy part |
| SHOCK SPRING, LOWER INCABLOC | 400/6 | 172.03/INCA #4 | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| UP INCA SETTING D270 H9 | 400/17 | 100.11.270.9 | Buy part |
