Lip T15B
Ligne: 13'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 29.4 mm
Height: 3.8 mm
Hands: 1.50 x 0.80 / 0.20 mm

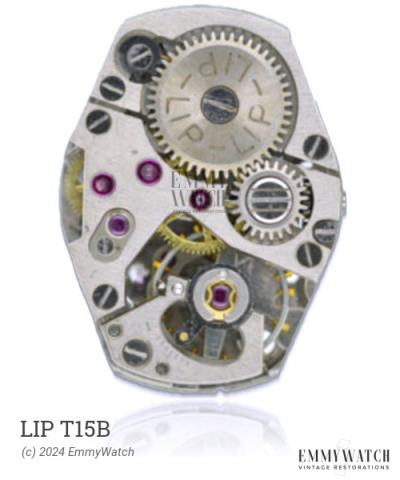

The Lip T15B watch movement is a member of the Wehrmachtswerk line, which was used by the German military. Its technical details are similar to the AS 1130 movement, but the differences between the various calibres in this line, including the 1399, are unknown. There are two calibres of this line with a size of 13.5''', namely the 1337 and 1511, and two calibres with a size of 14''', namely the 1486 and 1543. Additionally, there are three calibres in this line that feature an indirect sweep second: the 1155, 1164, and 1195. However, these movements were in production for only a short period, as they were soon replaced by the AS 1188 movement with a direct sweep second. The Lip T15B movement is a manual wind movement with a sub second function and it was commonly used around 1955.
The Lip T15B features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
