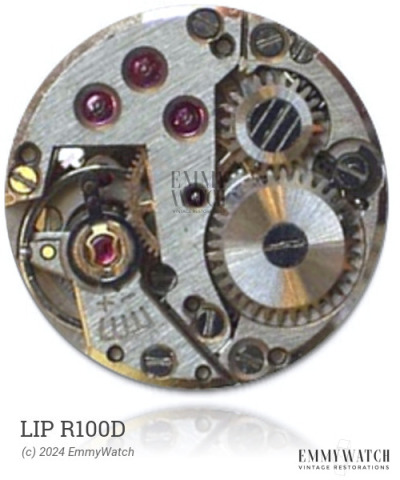

Lip R100D
Ligne: 10.5'''
Jewels: 15
Power Reserve: 36 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1925
Diameter: 23.75 mm
Height: 4.3 mm
Hands: 1.30 x 0.80 / 0.24 mm
The Lip R100D is a manual wind watch movement with a sub-second function. It was in use around 1925. The movement is available in various bridge layouts, some of which may be labeled as AS 340. There are multiple models within the A. Schild range, but specific differences between them are not known. The movement has been listed with several designations, including 302, 303, 311, 313, 323, 324, 328, 329, 333, 342, 344, 361, 362, 365, 371, 383, 396, 473, 546, 549, 569, 585, 595, 603, 621, 629, 636, 694, 709, 714, 717, 720, 731, 775, 790, 803, 825, 915, and 951.
The Lip R100D features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
