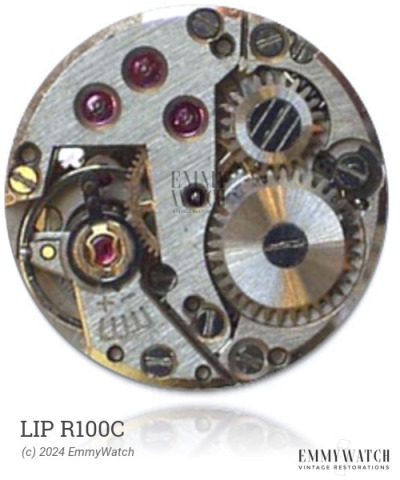

Lip R100C
Ligne: 9.75'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1964-
Diameter: 21.7 mm
Height: 3.4 mm
Hands: 1.40 x 0.85 x 0.22 mm
Base: Bidlingmaier 91
The Lip R100C watch movement, produced from 1964 onwards, features a manual wind mechanism and sweep second function. In later samples, the setting lever is equipped with a pin instead of a screw, and the minute wheel also incorporates a pin. These parts can be employed in older samples by removing the minute-wheel pin from the plate and adapting the setting-lever spring accordingly.
The Lip R100C features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.095 x 265 x 8.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
