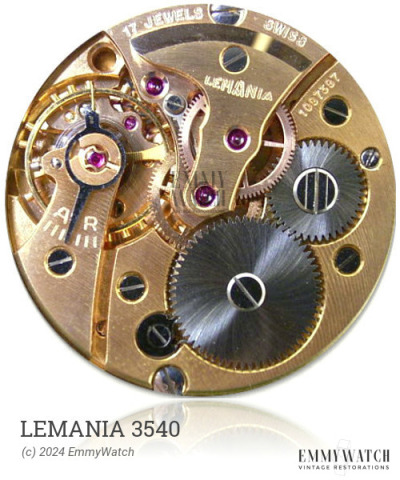

Lemania 3540
Ligne: 6.75 x 8'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 47 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1980
Size: 15.35 x 18.2 mm
Height: 3.45 mm
Hands: 1.10 x 0.60 mm
The Lemania 3540 watch movement, introduced around 1980, bears similarities to the 6660 movement, featuring a mobile stud carrier and various minor modifications. However, the specific differences between the 6664 and 6665 movements are not well-documented. The movement operates on manual winding functionality but does not provide further detailed information on its functions.
The Lemania 3540 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 260 x 7.0 mm | GR4446 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
