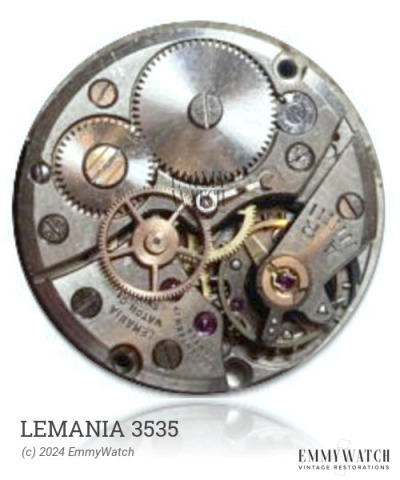

Lemania 3535
Ligne: 12'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 27.5 mm
Height: 3.9 mm
Hands: 1.60 x 0.78 / 0.20 mm
Base: Lemania 3000
The Lemania 3535 watch movement is a manual wind mechanical movement with a sub-second function. It is similar to the Lemania 3100 movement, but specific differences between the two are not known. The Lemania 3535 movement was commonly used around the period of 1945.
The Lemania 3535 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.105 x 360 x 10.5 mm | GR3271 | Manual | Buy mainspring |
| 1.30 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
