Lemania 3010
Ligne: 10.5'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 3.85 mm
Hands: 1.40 x 0.80 / 0.22 mm

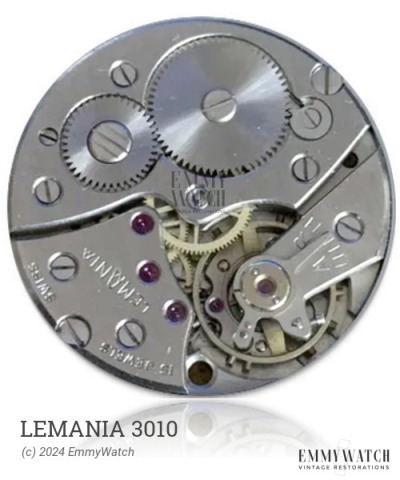

The Lemania 3010 watch movement is a manually-wound movement with sub-second and sweep seconds functions. It is part of a series that includes the 810 through 815, 818, 822, 823, 897, and 899 models. The differences between these models are not known, but they are likely official designations referring to variations in base plates and bridge layouts.
The Lemania 3010 features the following functions:
- Manual Winding
- Sub Second
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 3585 | Ordinary/None | Buy staff |
| 824 | Ordinary/None | Buy staff |
| 884 | Incabloc | Buy staff |
| 883 | Incabloc | Buy staff |
| 3235 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.110 x 280 x 8.5 mm | GR4513 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
