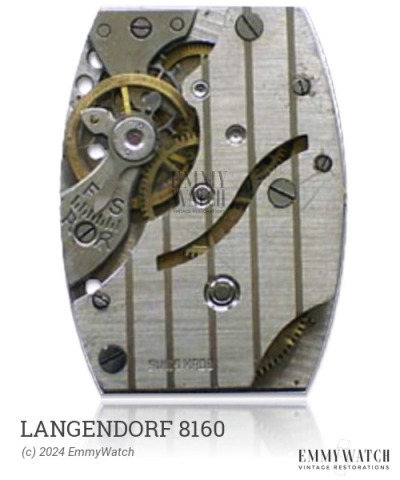

Langendorf 8160
(Lanco, Lang)
Ligne: 11.5'''
Jewels: 15/17/18
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1943
Diameter: 26 mm
Height: 3.1 mm
Hands: 1.30 x 0.80 / 0.22 mm
The Langendorf 8160 is a manual wind watch movement with a sub-second function. It features an optional gold lever and escape wheel. The movement is available in different bridge shapes, but more detailed differences between the Peseux 200, 202, 203, and 205 are not known. The Langendorf 8160 movement was commonly used around 1943.
The Langendorf 8160 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 300 x 9.0 mm | GR2920 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
