Langendorf 559
(Lanco, Lang)
Ligne: 5.75'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 13.25 mm
Height: 3.1 mm
Hands: 0.99 x 0.49 mm

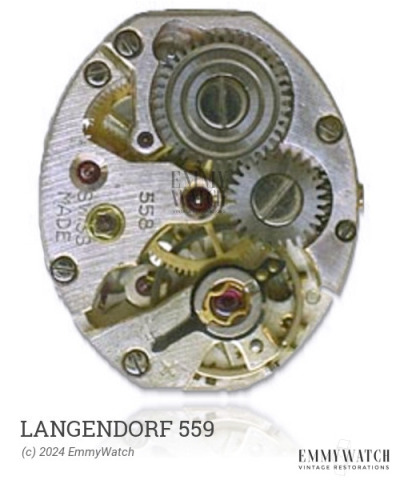

The Langendorf 559 watch movement features Girocap combined settings for the escapement wheel and an indirectly driven minute hand, allowing for a large balance. Produced in collaboration with Doxa, Ebel, Eberhard, Favre-Leuba, Girard-Perregaux, Juvenia, and Zodiac, these movements are also referred to as Felsa 4035 in some sources. However, the exact producer of these calibres remains uncertain as they are not found in any other register. The Langendorf 559 movement functions as a manual wind backwinder with a backwind feature, and it was commonly used around 1965.
The Langendorf 559 features the following functions:
- Manual wind backwinder
- Reverse Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.060 x 180 x 5.5 mm | GR3560 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
