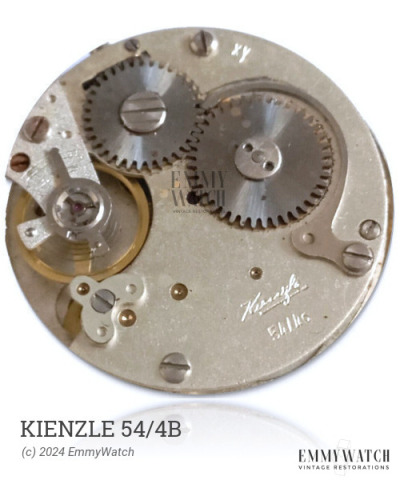

Kienzle 54/4B
Ligne: 12'''
Jewels: 17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1951
Diameter: 27 mm
Height: 4.7 mm
Hands: 2.00 x 1.50 x 0.90 x 0.20 mm
The Kienzle 54/4B watch movement is a manual wind mechanism with a sweep second function. It features a date hand that can be set by a pusher at 8 o'clock, as well as a day function that can be set by a pusher at 10 o'clock when the crown is pulled. Additionally, the month function can be set by a pusher at 10 o'clock when the crown is pushed. This movement was utilized around 1951.
The Kienzle 54/4B features the following functions:
- Date hand: set by pusher at 8h
- Day: set by pusher at 10h, crown pulled
- Manual Winding
- Month: set by pusher at 10h, crown pushed
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.120 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
