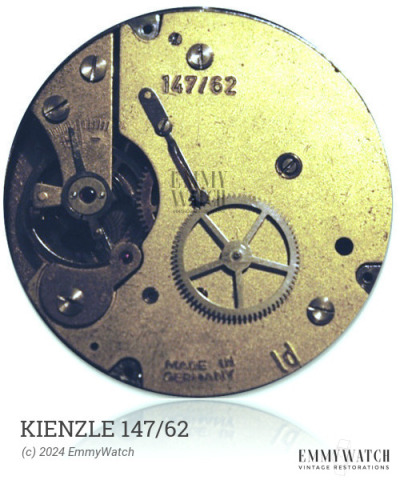

Kienzle 147/62
Ligne: 10.5'''
Jewels: 15/17/18
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1943
Diameter: 23.7 mm
Height: 3.1 mm
Hands: 1.30 x 0.80 / 0.22 mm
The Kienzle 147/62 watch movement is a manual wind movement with sub-second function. It was in use around 1943. Not much is known about the differences between the 180 and 184 variations of this movement. One notable characteristic is the optional gold lever and the variations in bridge shapes. Further details about the movement remain undisclosed.
The Kienzle 147/62 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.105 x 300 x 9.0 mm | GR3125 | Manual | Buy mainspring |
| 1.25 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
