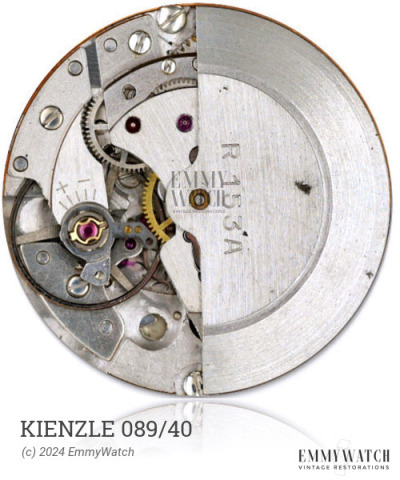

Return To ShopThe Kienzle 089/40 watch movement is an automatic movement featuring a ball-bearing rotor and two roller freewheels. It incorporates a worm screw regulation gear and is based on the manual wind calibre AS 1687/1688. The automatic mechanism is a collaboration between Doxa, Eberhard, Favre-Leuba, Girard-Perregaux, and Zodiac. The specific differences between the 42.0, 42.1, and 42.4 are unknown. This movement offers automatic winding, a sweep second hand, a date function set by adjusting the 20:40-24h, a hack feature, stop seconds function, and a sweep seconds hand. It is a period movement used around 1970.
The Kienzle 089/40 features the following functions:
Ronda Reference # | Shock System | Buy |
---|
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.10 x 0.110 x 10.0 mm | Auto | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
---|---|---|---|
See More | |||
See More |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
CLUTCH LEVER | 435/931 | 435/3 | Buy part |
DATE CORRECTOR | X/12489 | 2566/ETA 210.011 | Buy part |
