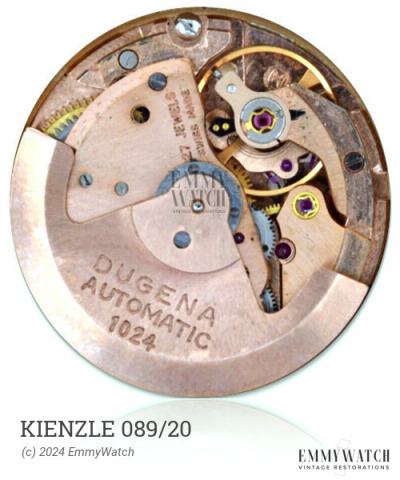

Kienzle 089/20
Ligne: 11.5'''
Jewels: 17/25
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1970
Diameter: 26 mm
Height: 4.7 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Kienzle 089/20 is a mechanical watch movement that was commonly used around 1970. It features an automatic mechanism, a sweep second hand, and a date function. The date can be adjusted by changing the time between 20:40 and 24h. Differences between the 2526 and related movements (2522R, 2527, 2529) are currently unknown.
The Kienzle 089/20 features the following functions:
- Automatic Winding
- Date function: set by changing 20:40-24h
- Sweep second movement
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.115 x 400 x 11.5 mm | GR2966X | Auto | Buy mainspring |
| 1.20 x 0.120 x 350 x 11.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
