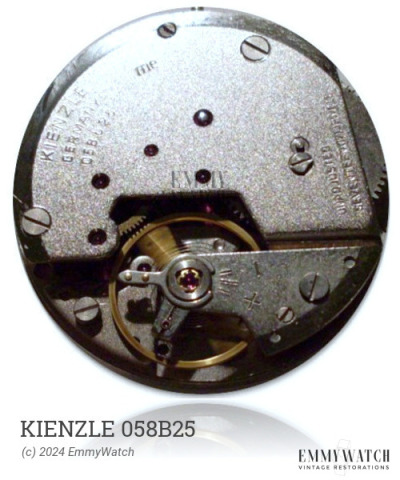

Kienzle 058B25
Ligne: 10.5'''
Jewels: 15/17
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1940
Diameter: 23.7 mm
Height: 4.2 mm
Hands: 1.40 x 0.70 mm
The Kienzle 058B25 watch movement is a manual wind mechanical movement with a sub-second function. It was produced around 1940. The movement belongs to a series of different bridge shapes, but details regarding the specific differences between the various models are not available. Other models within the same period include 1, 10.5''', 2, 10.5''', 30, 31, 65 old, 66 old, 70 old, 71 old, 73 old, 76 old, 78, 90, 91, 107, 108, 110, 112.
The Kienzle 058B25 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 4466 | Ordinary/None | Buy staff |
| 3319 | Ordinary/None | Buy staff |
| 3212 | Supershock | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.80 x 0.115 x 360 x 10.5 mm | GR5286 | Manual | Buy mainspring |
| 1.70 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
