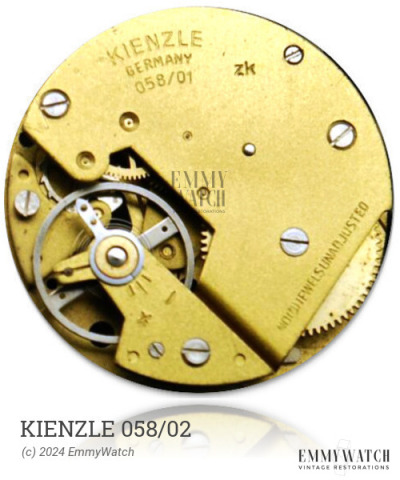

Kienzle 058/02
Ligne: 5.75 x 8.5'''
Jewels: 15
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1960
Size: 12.8 x 19.65 mm
Height: 3.9 mm
Hands: 1.10 x 0.60 mm
The Kienzle 058/02 is a mechanical watch movement featuring a pin-lever escapement. It is part of a group of movements known as the calibres Lorsa 14, 14R, 514, and 514A, but there is inconsistency in the way these movements are described. The available information regarding this movement is not entirely reliable. The Kienzle 058/02 is a manual wind movement, and it was used during the period around 1960.
The Kienzle 058/02 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.080 x 245 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
