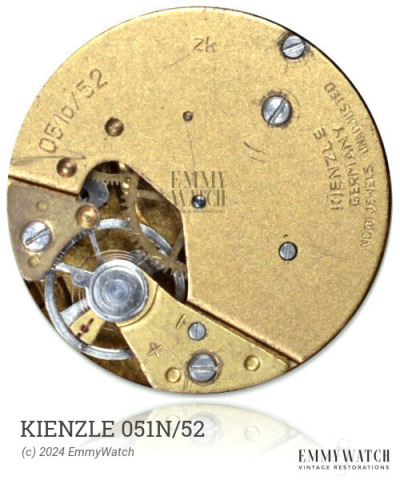

Kienzle 051N/52
Ligne: 9.75'''
Jewels: 15
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Diameter: 22 mm
Height: 4.7 mm
Hands: 1.50 x 1.00 mm
The Kienzle 051N/52 watch movement features a manual winding mechanism and utilizes a pin-lever escapement. It incorporates a ratchet on the dial side and a crown mechanism with a rocker bar. The differences between the 452 and 454 models are unknown. This movement also includes the functions of sweep seconds and pin lever. It was commonly used around the period of 1950.
The Kienzle 051N/52 features the following functions:
- Manual Winding
- Pin lever
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.55 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.50 x 0.100 x 240 x 7.5 mm | GR41181 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
