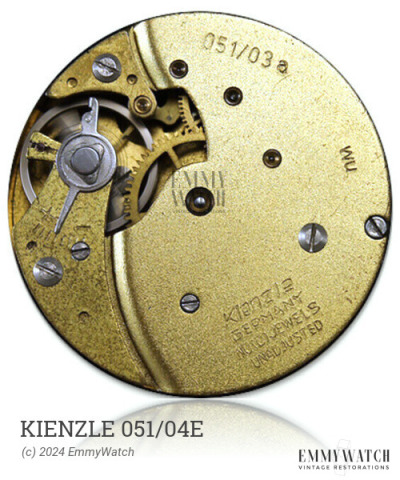

Kienzle 051/04E
Ligne: 10.5'''
Jewels: 8
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1955
Diameter: 23.8 mm
Height: 4.4 mm
Hands: 1.28 x 0.77 / 0.22 mm
Base: Kienzle 48
The Kienzle 051/04E watch movement features a pin-lever escapement, a ratchet on the dial side, and a crown mechanism with a rocker bar. The exact differences between the 48/8 and 48/8a models are not known. It is a manual wind movement with sub-second and sweep seconds functions. The period of usage for this movement is approximately around the year 1955.
The Kienzle 051/04E features the following functions:
- Manual Winding
- Sub Second
- Sweep Seconds
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1366 | Ordinary/None | Buy staff |
| 1367 | Ordinary/None | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 315 x 9.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
