Junghans J69
Ligne: 12.5'''
Jewels: 18
Power Reserve: 42 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1955-1962
Diameter: 28 mm
Height: 5.4 mm
Hands: 1.55 x 1.05 x 0.22 mm

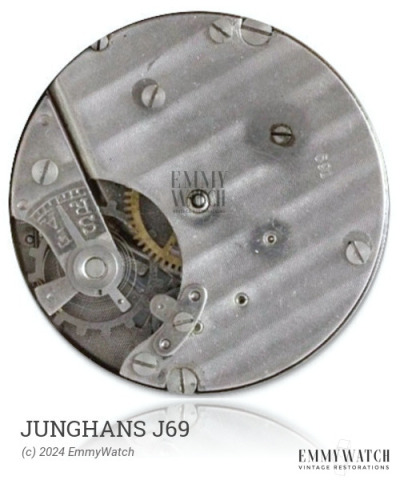

The Junghans J69 watch movement was manufactured between 1955 and 1962, with a total production of 197,127 units. It is a manual wind movement that includes a sweep second hand and Incabloc Shock Protection.
The Junghans J69 features the following functions:
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.130 x 360 x 11.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.120 x 360 x 10.5 mm | GR4539 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| RATCHET WHEEL | 0285408 | 415/1141 | Buy part |
| STAFF, INCA | 100/2622 | Buy part | |
| STEM | 200/1344F | Buy part | |
| WINDING PINION | 410/1143 | 2979 | Buy part |
