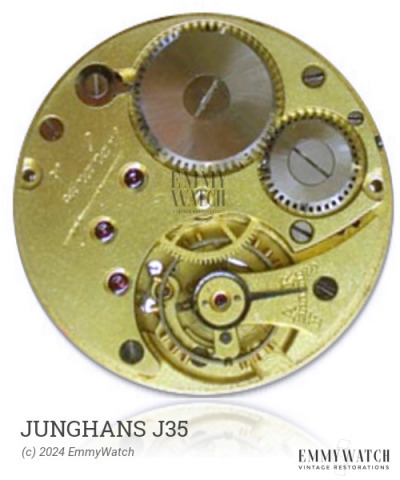

Junghans J35
Ligne: 5.75'''
Jewels: 17
Power Reserve: 42 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Diameter: 13.25 mm
Height: 3.1 mm
Hands: 0.99 x 0.49 mm
Base: Felsa 4035
The Junghans J35 watch movement features Girocap combined settings for the escapement wheel and an indirectly driven minute that allows for a large balance. It is part of a collaborative effort between Doxa, Ebel, Eberhard, Favre-Leuba, Girard-Perregaux, Juvenia, and Zodiac. Bestfit indicates that the calibres Felsa 4035 and 4036 may be equivalent to this movement, but their true producer remains uncertain as they are not found in other registers. Not much is known about any differences between the 56 and 56.19 variations of this movement. It is a manual wind movement and was in use around 1965.
The Junghans J35 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.060 x 180 x 5.5 mm | GR3560 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
