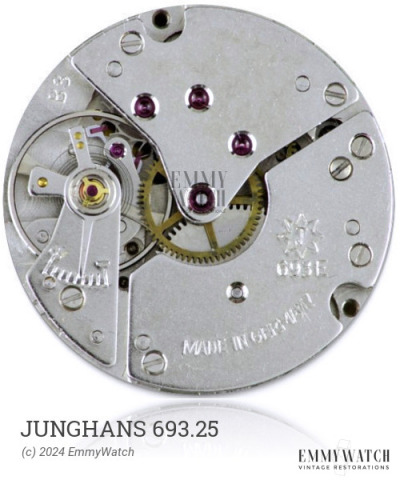

Junghans 693.25
Ligne: 8 x 9'''
Jewels: 17/21
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Size: 18.55 x 20.85 mm
Hands: 1.50 x 0.90 mm
The Junghans 693.25 watch movement is a manual wind mechanical movement that was developed in 1948. It is closely related to the ETA 1001 movement, with differences not known between the two. The Junghans 693.25 is likely a catalogue designation for a variant with different bridge shapes. This movement features a sweep second function.
The Junghans 693.25 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.25 x 0.100 x 260 x 8.0 mm | GR3108 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
