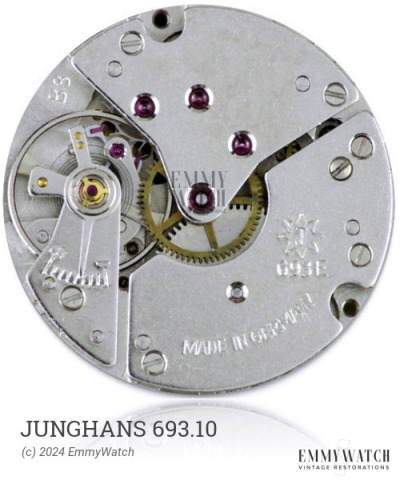

Junghans 693.10
Ligne: 5.75 x 8.5'''
Jewels: 15
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 12.8 x 19.5 mm
Height: 3.6 mm
Hands: 1.20 x 0.60 mm
The Junghans 693.10 is a manual wind watch movement that was in use around the 1950s. It shares many parts with the Eterna 1057 movement. There are different variations within the movement series, identified by numbers such as 761-764, 773, 838-841, 846, 862, 882, 1030, and 1040. These variations likely represent different base plates, bridge layouts, and lever bridges, although specific differences are unknown.
The Junghans 693.10 features the following functions:
- Manual Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 280 x 8.0 mm | GR3204 | Manual | Buy mainspring |
| 1.30 x 0.080 x 260 x 7.5 mm | GR3203 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
