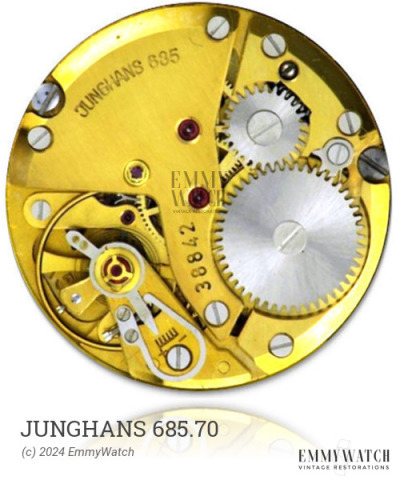

Junghans 685.70
Ligne: 13.25'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 52 hrs
Frequency: 28800 vph
Type: Manual Wind
Period used: 1983-1998
Diameter: 30.4 mm
Height: 6.35 mm
Hands: 2.00 x 1.20 x 0.25 / 0.18 x 0.18 mm
Base: Valjoux 7760
The Junghans 685.70 watch movement, also known as the 7760 without hour counter and day, was manufactured from 1983 to 1998. It is a manual-wind chronograph movement featuring a 60-second and 30-minute subdial, cam switched mechanism. It includes a sub second function, quickset date, hack feature, shock protection, and calendar.
The Junghans 685.70 features the following functions:
- Calendar
- Chronograph Movement
- Date: quickset
- Hack feature
- Manual-wind chronograph, 60s, 30min, cam switched
- Shock Protection
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.50 x 0.112 x 600 x 12.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
