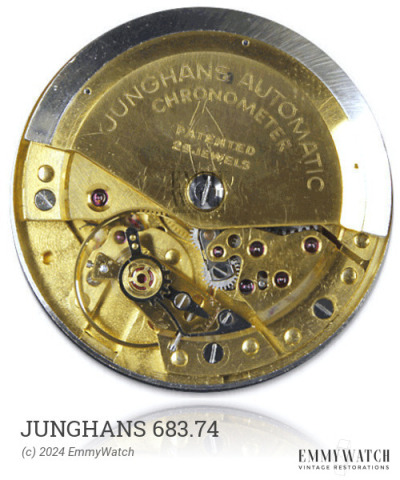

Junghans 683.74
Ligne: 7.75'''
Jewels: 21/23/25
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1959-1967
Diameter: 17.5 mm
Height: 5.55 mm
Hands: 1.20 x 0.70 x 0.20 mm
Base: ETA 2369
The Junghans 683.74 watch movement, utilized during the period from 1959 to 1967, features an indirectly driven minute function that enables the incorporation of a large balance and a low-profile design. This movement is automatic and includes a sweep second hand, as well as a date function that is adjusted by changing the 21-24 hour marker.
The Junghans 683.74 features the following functions:
- Automatic Winding
- Date: set by changing 21-24h
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.080 x 220 x 7.0 mm | GR3201X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
