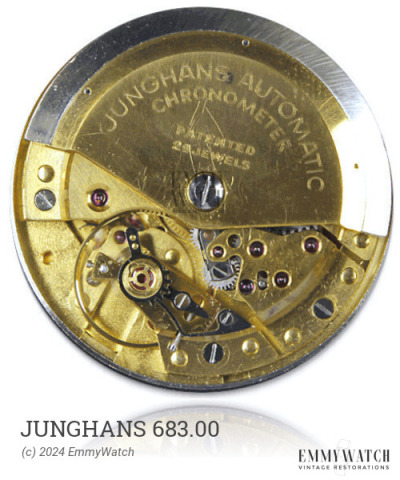

Junghans 683.00
Ligne: 11.5'''
Jewels: 17/21/25
Lift Angle: 52°
Power Reserve: 44 hrs
Frequency: 21600 vph
Type: Automatic
Period used: ~1972
Diameter: 26 mm
Height: 5.2 mm
Hands: 1.50 x 0.90 x 0.21 mm
The Junghans 683.00 watch movement is equipped with a jewel bearing for the barrel, facilitating smooth and reliable power transfer. Its indirectly driven minute allows for the inclusion of a larger balance and a low-profile design. Additionally, this movement offers a range of functions including automatic winding, sweep seconds, adjustable stud holder, and shock protection. It was predominantly utilized in timepieces during the approximate period of 1972.
The Junghans 683.00 features the following functions:
- Adjustable Stud Holder
- Automatic Winding
- Shock Protection
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5238 | Ordinary/None | Buy staff |
| 5238 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.115 x 360 x 13.5 mm | Auto | Buy mainspring | |
| 1.45 x 0.115 x 360 x 10.5 mm | GR39981X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |

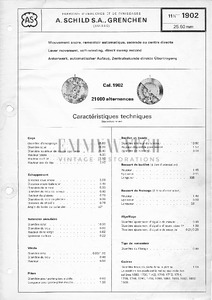

Documents
Parts Listing
