Junghans 682.73
Ligne: 13'''
Jewels: 17
Lift Angle: 49°
Power Reserve: 47 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 29.4 mm
Height: 3.85 mm
Hands: 1.50 x 0.90 / 0.21 mm

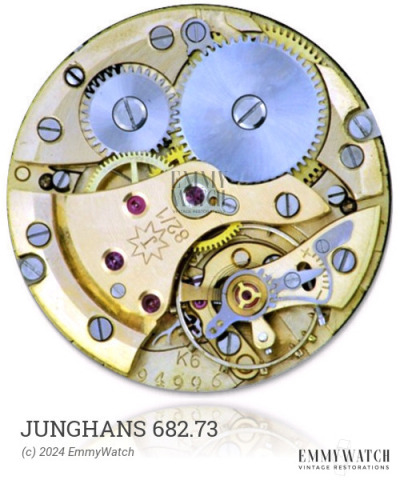

The Junghans 682.73 watch movement, also known as Wehrmachtswerk, is a manual wind movement with a sub second function. It features an adjustable stud holder and shock protection. This movement was widely used around the period of 1970.
The Junghans 682.73 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Shock Protection
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.75 x 0.130 x 420 x 12.0 mm | GR5165 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
