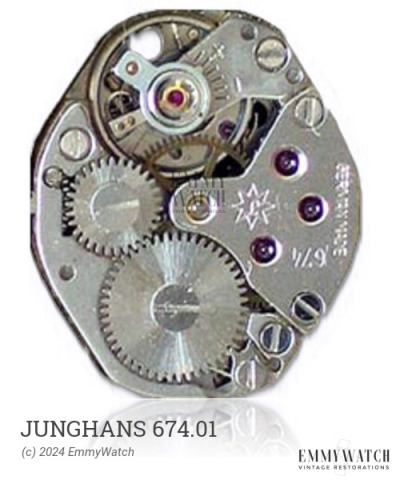

Junghans 674.01
Jewels: 17
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 23.7 mm
Height: 2.8 mm
Hands: 1.30 x 0.70 / 0.22 mm
Base: A. Schild 1760
The Junghans 674.01 watch movement, introduced in 1759, features a 11.5''' size and operates at a frequency of 21,600 vibrations per hour. It is a manual wind movement with a sub second function.
The Junghans 674.01 features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.100 x 290 x 9.0 mm | Manual | Buy mainspring | |
| 1.20 x 0.110 x 320 x 9.5 mm | GR2950 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| GIB/BOLT INCA SHOCK .15 THICK | 400/774 | 180.15/INCA #12 | Buy part |
| JEWEL, INCA BALANCE 135X50X08 | 400/10 | 111.08/INCA #7 | Buy part |
| JEWEL, UPPER CAP INCA 120X18 | 400/8 | 122.11/INCA #6 | Buy part |
| LOWER UNIT | 119.20.8 | Buy part | |
| SHOCK SPRING, LOWER 223 X 155 | 400/811 | 173.03/INC | Buy part |
| SHOCK SPRING, UPPER INCABLOC | 400/4 | 170.03/INCA #1 | Buy part |
| UPPER UNIT D310 H8 | 100.21.310.8 | Buy part |
