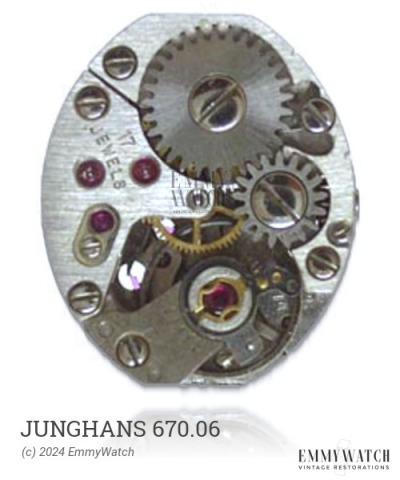

Junghans 670.06
Ligne: 11.25'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1955-1967
Diameter: 25.8 mm
Height: 4.0 mm
Hands: 1.41 x 0.79 x 0.18 mm
The Junghans 670.06 watch movement, produced from 1955 to 1967, is a manual wind movement with a sweep second hand and a date function. It features a Meister gilt mounting flange and utilizes a Kif-Duofix combined setting for the escape wheel. Notably, it may include a left-handed ratchet-wheel screw, as observed in the 84/S3 model. Differences between the 684.12 and 684.75 variants are currently unknown.
The Junghans 670.06 features the following functions:
- Date
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
