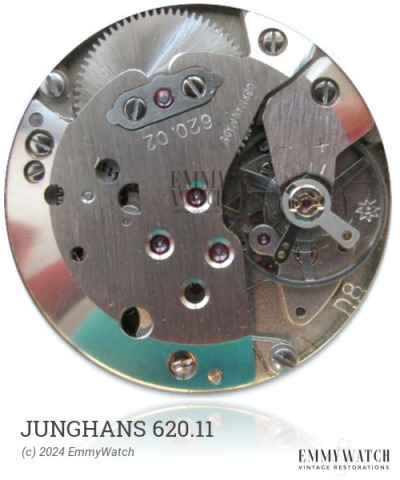

Junghans 620.11
Ligne: 13.5'''
Jewels: 1
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 30.46 mm
Height: 3.9 mm
Hands: 1.80 x 1.30 mm
The Junghans 620.11 watch movement features a pin-lever escapement. The train and hand gear are driven separately by the barrel, which is a unique characteristic. This movement is manually winded and does not include a second hand. It utilizes a pin lever mechanism. The Junghans 620.11 movement was commonly used around the year 1965.
The Junghans 620.11 features the following functions:
- Manual Winding
- Pin lever
- Without Second Hand
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.40 x 0.110 x 340 x 10.0 mm | GR3700 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
