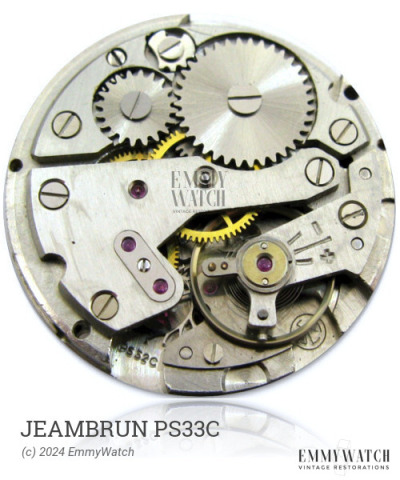

Jeambrun PS33C
Ligne: 8.75'''
Jewels: 7/15/17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1935-1967
Diameter: 19.7 mm
Height: 3.45 mm
Hands: 1.20 x 0.65 / 0.18 mm
The Jeambrun PS33C watch movement is a manual wind movement with a sub-second function. It was produced between the years 1935 and 1967, with approximately 16,000,000 units manufactured during this time. This movement does not feature a separate escape-wheel cock. The movements within this family vary in balance styles and calibre designations, but these differences are small enough to allow for parts interchangeability. Some calibres within this family are also equally looking but have a height of 3.0mm. The Jeambrun PS33C movement is part of a series, including calibres such as 970, 980, 987, 999, 1014, 1036, 1047, 1056, 1090, 1210, 1217, 1251, 1254, 1276, and 1386, with no known differences noted between them.
The Jeambrun PS33C features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.080 x 250 x 7.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
