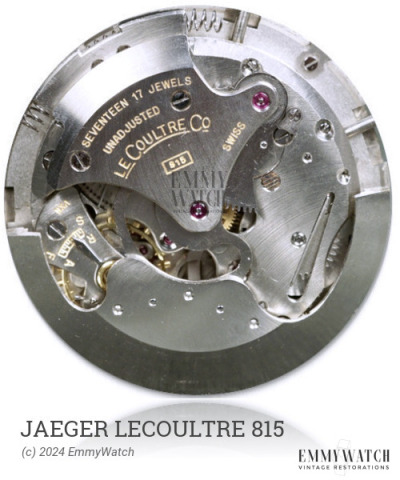

Jaeger Lecoultre 815
(JLC, Lecoultre)
Ligne: 11.5'''
Jewels: 17/21
Power Reserve: 38 hrs
Frequency: 18000 vph
Type: Automatic
Period used: ~1950
Diameter: 26 mm
Height: 5.75 mm
Hands: 1.30 x 0.90 x 0.22 mm
The Jaeger Lecoultre 815 watch movement is a detached manual wind movement, similar to the 1361 and 1457 movements. It incorporates several functions, including automatic winding and a sweep second hand. The movement was commonly used in watches produced around the 1950s.
The Jaeger Lecoultre 815 features the following functions:
- Automatic Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 280 x 8.5 mm | GR3952X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
