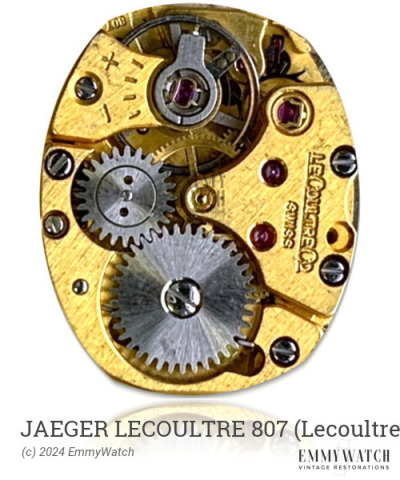

Jaeger Lecoultre 807
(JLC, Lecoultre)
Ligne: 14'''
Jewels: 17
Power Reserve: 45 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1970-1976
Diameter: 31.3 mm
Height: 6.0 mm
Hands: 1.40 x 0.95 x 0.27 / 0.27 x 0.18 mm
Base: Valjoux 7733
The Jaeger Lecoultre 807 watch movement was manufactured during the period of 1970-1976. It features three different reset hammers and offers various functions including a manual-wind chronograph with 60-second and 30-minute counters, a sub-second hand, an adjustable stud holder, chronograph capabilities, and Incabloc shock protection. This movement was used exclusively between the years 1970 and 1976.
The Jaeger Lecoultre 807 features the following functions:
- Adjustable Stud Holder
- Chronograph Movement
- Incabloc Shock Protection
- Manual-wind chronograph, 60s, 30min, cam switched
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.135 x 420 x 12.5 mm | GR4580 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
