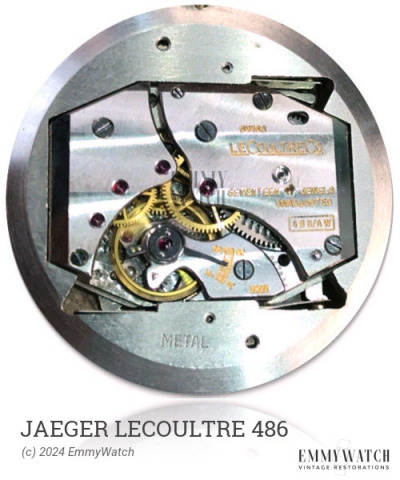

Jaeger Lecoultre 486
(JLC, Lecoultre)
Ligne: 8 x 9'''
Jewels: 17/21
Power Reserve: 43 hrs
Frequency: 18000 vph
Type: Manual Wind
Size: 18.55 x 20.85 mm
Hands: 1.50 x 0.90 mm
The Jaeger Lecoultre 486 is a manual wind mechanical watch movement developed in 1948. It shares similarities with the ETA 1004, although the exact differences between the two are not known. These movements are likely differentiated by catalogue designations for different bridge shapes. The Jaeger Lecoultre 486 features manual winding and a sweep second function.
The Jaeger Lecoultre 486 features the following functions:
- Manual Winding
- Sweep Seconds
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.25 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.25 x 0.100 x 260 x 8.0 mm | GR3108 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
