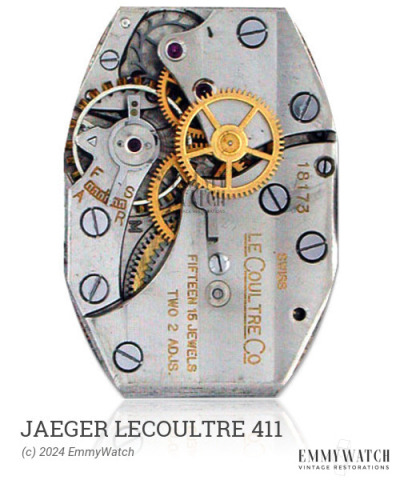

Jaeger Lecoultre 411
(JLC, Lecoultre)
Ligne: 4.5 x 6'''
Jewels: 17
Power Reserve: 37 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1965
Size: 10.25 x 14 mm
Height: 3.4 mm
Hands: 0.88 x 0.45 mm
Base: Movado 48
The Jaeger Lecoultre 411 watch movement features a manual wind mechanism and is nearly equivalent to the family Movado 45 through 48. It is equipped with an adjustable stud holder and KIF shock protection. This movement was in use around the mid-1960s.
The Jaeger Lecoultre 411 features the following functions:
- Adjustable Stud Holder
- KIF Shock Protection
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.065 x 180 x 5.5 mm | GR3177 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| ARBOR, PALLET 31X90X7 | 72S/166P | 714/MOV 45 | Buy part |
| BALANCE COMPLETE | 721/1468 | 721/1468 | Buy part |
| CANNON PINION, HT 1.95 | 240/1428 | Buy part | |
| CENTER WHEEL | 201/819 | 201/819 | Buy part |
| CLUTCH | 407/755 | 407/755 | Buy part |
| FOURTH WHEEL, REGULAR | 220/569 | Buy part | |
| HOUR WHEEL, HT 1.15 | 250/1172 | 250/MOV 45 | Buy part |
| MAINSPRING 1.30-.065-180 5,5 | MS-415A | GR 3177 | Buy part |
| MINUTE WHEEL | 260/753 | Buy part | |
| PALLET FORK & ARBOR | 710/954 | 710/M0V 45 | Buy part |
| ROLLER | 82S/326R | Buy part | |
| SET BRIDGE *GENERIC | 445/923 | 445/923 | Buy part |
| SET LEVER | 443/1035 | 443/MOVADO 45 | Buy part |
| SET SPRING *UA* | 440/746 | Buy part | |
| STAFF, .60 KIF | 100/2546 | 100/2546 | Buy part |
| STAFF, .65 KIF | 100/1748 | Buy part | |
| STEM | 200/1231F | Buy part | |
| THIRD WHEEL | 210/1045 | 210/MOV 48 | Buy part |
| WINDING PINION | 410/987 | 410/MOV 45 | Buy part |
