IWC 790
Ligne: 12.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 42 hrs
Frequency: 28800 vph
Type: Automatic
Period used: 1972-1984
Diameter: 27.9 mm
Height: 4.8 mm
Hands: 1.30 x 0.60 x 0.15 mm
Base: Omega 1010

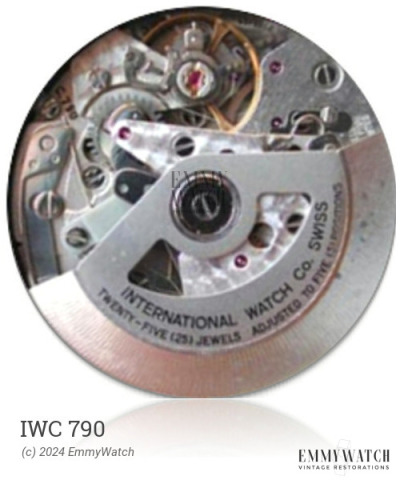

The IWC 790 watch movement was produced from 1972 to 1984, with a total of 575,000 units manufactured. Unlike traditional manual-wind calibers, the automatic gear is integrated within the movement. This design allows for a robust rotor bearing, despite the movement's low profile. The IWC 790 movement features a sweep second hand, day and date display with quickset capability, and an automatic function. It is equipped with Incabloc Shock Protection and includes a hack feature. The movement's period of use is from 1972 to 1984.
The IWC 790 features the following functions:
- Automatic Winding
- Calendar with quickset
- Date: quickset
- Day and Date Display
- Day: quickset by setting hands backwards
- Hack feature
- Incabloc Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 0.95 x 0.120 x 500 x 11.7 mm | GR23781X | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
