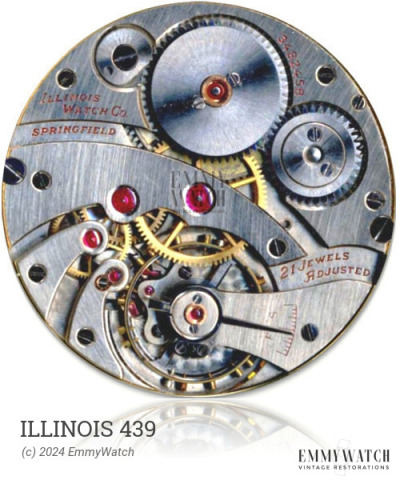

Return To ShopThe Illinois 439 watch movement is a mechanical open face calibre with a Breguet hairspring, providing precise timekeeping. It is equipped with a stem mechanism without a setting-lever spring, ensuring smooth winding and easy time setting. The movement possesses the following functions: stem winding and setting, allowing for convenience in daily use, and a sub-second function for accurate timekeeping. The Illinois 439 movement was specifically designed for use starting from 1939.
The Illinois 439 features the following functions:
Dimensions | GR Reference # | End Type | Buy |
---|---|---|---|
1.10 x 0.190 x 420 x 15.0 mm | GR2734 | Manual | Buy mainspring |
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
---|
Part Description | Reference # | Alternate | Buy |
---|---|---|---|
BALANCE COMPLETE, BREGUET | 721/GRU 380 | 721/GRU 380 | Buy part |
MAINSPRING 1.10-.19-420 15 | MS-24V | GR 2734 | Buy part |
PALLET ARBOR | 72S/46P | 714/GRU 225 | Buy part |
ROLLER | 82S/208R | 82S/208R | Buy part |
STAFF | 100/389 | 723/GRU 380 | Buy part |
STEM | 200/403F | 401/GRU 380 | Buy part |
