Henzi Pfaff 433
Ligne: 11.5'''
Jewels: 17/21
Lift Angle: 52°
Power Reserve: 48 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1970
Diameter: 26 mm
Height: 4.0 mm
Hands: 1.50 x 0.90 x 0.21 mm

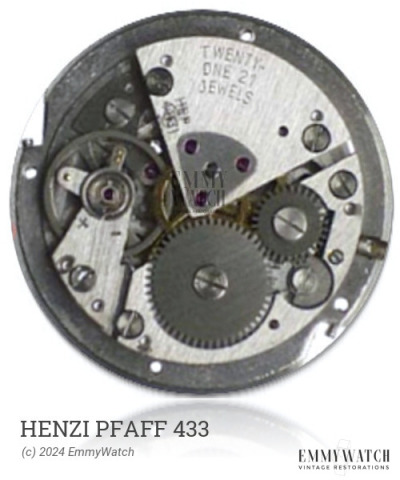

The Henzi Pfaff 433 watch movement is a manual wind movement with a sweep second function. It features an indirectly driven minute hand, which allows for a larger balance and a low profile. Additionally, it includes an adjustable stud holder and a sweep seconds function. The Henzi Pfaff 433 movement was commonly used during the period around 1970.
The Henzi Pfaff 433 features the following functions:
- Adjustable Stud Holder
- Manual Winding
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 5238 | Ordinary/None | Buy staff |
| 5238 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.45 x 0.100 x 360 x 9.5 mm | GR3956 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More | |||
| See More | |||
| See More |
Documents
Parts Listing
