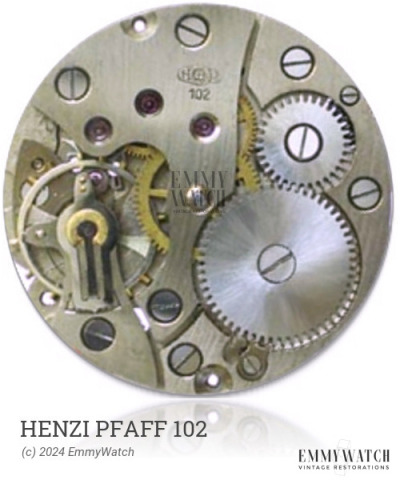

Henzi Pfaff 102
Ligne: 5.75 x 6.75'''
Jewels: 17
Power Reserve: 35 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1950
Size: 13.1 x 15.2 mm
Height: 3.55 mm
Hands: 1.00 x 0.60 mm
The Henzi Pfaff 102 is a manual wind mechanical watch movement that was used during the period around 1950. The specific technical differences between the Henzi Pfaff 102 and other similar watch movements, such as the 30, 60, and 66, are not known.
The Henzi Pfaff 102 features the following functions:
- Manual Winding
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.060 x 210 x 6.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
