Hanhart 86
Ligne: 6'''
Jewels: 17
Power Reserve: 35 hrs
Frequency: 21600 vph
Type: Manual Wind
Period used: ~1960
Diameter: 13.75 mm
Height: 3.15 mm
Hands: 1.00 x 0.50 mm

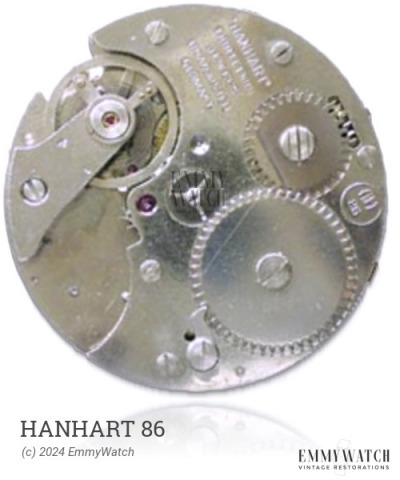

The Hanhart 86 watch movement is a manual wind, back-winder movement that was used around the 1960s. The specific differences between the Felsa 27 and Hanhart 86 movements are currently unknown.
The Hanhart 86 features the following functions:
- Manual wind, back-winder
- Reverse Winding
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.060 x 160 x 5.5 mm | GR3460 | Manual | Buy mainspring |
| 1.35 x 0.060 x 160 x 5.0 mm | GR3460 | Manual | Buy mainspring |
| 1.35 x 0.060 x 145 x 5.0 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
Documents
Parts Listing
