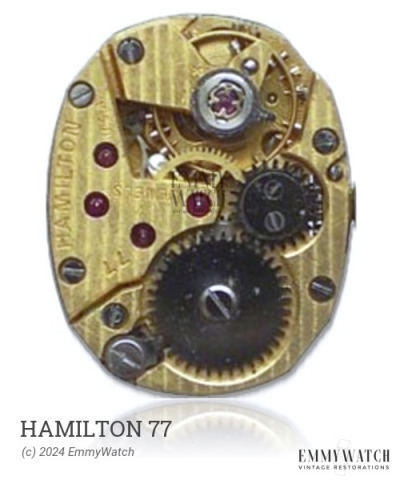

Hamilton 77
Ligne: 11.5'''
Jewels: 17
Power Reserve: 47 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1969
Diameter: 26 mm
Height: 3.75 mm
Hands: 1.50 x 0.90 x 0.21 mm
Base: Junghans 620.70
The Hamilton 77 watch movement is a budget version of the Junghans-620 family, specifically designed for Diehl watches. Its barrel features a jewel bearing only on the dial side. The movement is built on a plane 3(4 plate configuration. Notable functions of the Hamilton 77 movement include manual winding and a sweep second hand. This movement was commonly used during the period around 1969.
The Hamilton 77 features the following functions:
- Manual Winding
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.15 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
