Hamilton 66
Ligne: 11.5'''
Jewels: 7/25/30
Power Reserve: 44 hrs
Frequency: 18000 vph
Type: Automatic
Diameter: 25.9 mm
Height: 5.8 mm
Hands: 1.40 x 0.80 x 0.20 mm

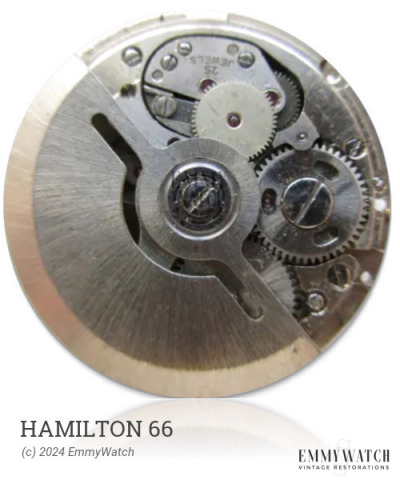

The Hamilton 66 watch movement features a jewel-bearing rotor and a sophisticated excenter self-winding mechanism with just one gear stage. It includes an easy-to-operate rotor lock and a fixed mainspring with a friction clutch on the pawl wheel. This movement offers several functions, including automatic winding, sweep seconds, and a calendar that allows for date adjustment by changing the time to 20:30-24h.
The Hamilton 66 features the following functions:
- Automatic Winding
- Calendar
- Date: set by changing 20:30-24h
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.100 x 9.5 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
