Hamilton 232
Ligne: 10.5'''
Jewels: 17
Lift Angle: 52°
Power Reserve: 46 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1965
Diameter: 23.7 mm
Height: 4.5 mm
Hands: 1.50 x 0.90 x 0.20 mm

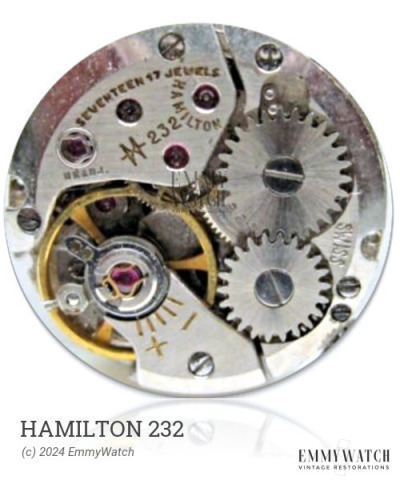

The Hamilton 232 is a manual wind watch movement that features a sweep second function and a date display which is set by changing the 21-24 hour. It is equipped with an adjustable stud holder and shock protection. The movement is categorized by its sweep seconds and was commonly used around 1965.
The Hamilton 232 features the following functions:
- Adjustable Stud Holder
- Date: set by changing 21-24h
- Manual Winding
- Shock Protection
- Sweep second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.70 x 0.100 x 320 x 9.0 mm | GR4880 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
