Hamilton 11
Ligne: 12'''
Jewels: 21
Power Reserve: 43 hrs
Frequency: 21600 vph
Type: Automatic
Period used: 1971-
Diameter: 27.4 mm
Height: 5.9 mm
Hands: 1.50 x 0.90 x 0.30 mm
The Hamilton 11 is a mechanical watch movement with a sophisticated excenter self-winding mechanism, comprised of just one gear stage. There are no known differences between the 7015A and 7017A versions. The movement features several functions including an automatic 60-second cam-switched chronograph, a quickset day display with dual language options, a quickset date display, an adjustable stud holder, shock protection, and a day and date display. This movement was used from 1971 onwards.
The Hamilton 11 features the following functions:
- Adjustable Stud Holder
- Automatic chronograph, 60s, cam switched
- Automatic Winding
- Calendar
- Chronograph Movement
- Date: quickset
- Day: quickset by repeated pushing the crown, 2 languages
- No Manual Wind
- Shock Protection
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents

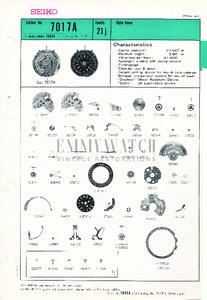

Parts Listing
