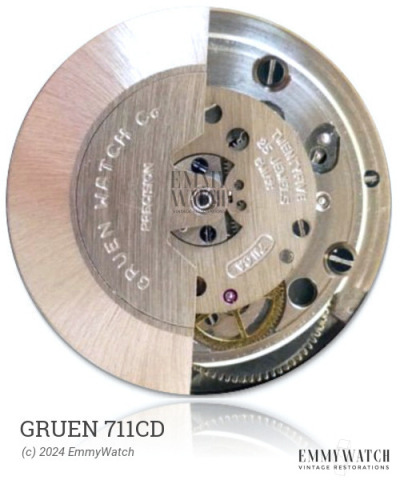

Gruen 711CD
Ligne: 11.5'''
Jewels: 17
Lift Angle: 52°
Frequency: 21600 vph
Type: Automatic
Period used: ~1980
Diameter: 26 mm
Height: 6.05 mm
Hands: 1.40 x 0.90 x 0.21 mm
The Gruen 711CD is a mechanical watch movement utilized around 1980. It features automatic winding, a sweep second hand, and quickset functions for both the day and date. The design includes separate driving mechanisms for the train and hand gear, allowing for a low-profile construction and a larger balance wheel. However, precision and stability are crucial in ensuring smooth operation due to the numerous interconnected wheels involved in coupling the second and minute hands.
The Gruen 711CD features the following functions:
- Automatic Winding
- Date: quickset
- Day and Date Display
- Day: quickset
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.20 x 0.120 x 325 x 10.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) | |
|---|---|---|---|
| See More |
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
