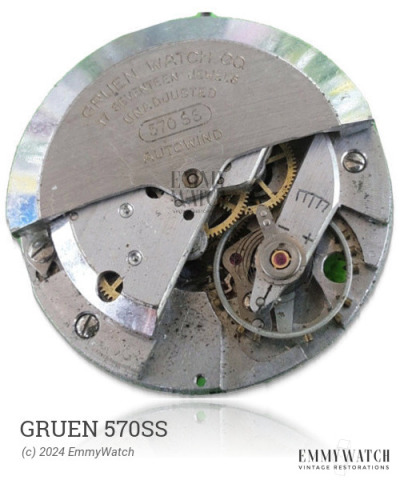

Gruen 570SS
Ligne: 11'''
Jewels: 15/17
Power Reserve: 32 hrs
Frequency: 18000 vph
Type: Automatic
Period used: 1940-1953
Diameter: 24.8 mm
Height: 5.55 mm
Hands: 1.30 x 0.80 x 0.21 mm
Base: A. Schild 1250
The Gruen 570SS is a detached manual wind watch movement used during the period 1940-1953. If equipped with 17 jewels, it includes caps for the escape wheel. It features an automatic (bumper) function and a sweep second hand.
The Gruen 570SS features the following functions:
- Automatic (bumper)
- Sweep second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.35 x 0.080 x 220 x 7.0 mm | Auto | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
