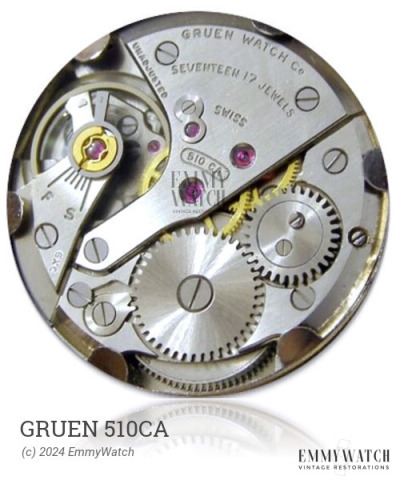

Gruen 510CA
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: 1923-1932
Diameter: 39.75 mm
Height: 4.3 mm
Hands: 1.65 x 0.92 / 0.27 mm
The Gruen 510CA watch movement was produced between 1923 and 1932, with a total of 169,000 units. It features an open face calibre and belongs to the model 10 series. This movement is equipped with a bimetallic screw balance and a Breguet hairspring. Additionally, it offers functions such as stem winding and setting, as well as a sub-second display.
The Gruen 510CA features the following functions:
- Stem wind and set
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.185 x 520 x 16.5 mm | DBH | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| CLICK, 12S | 2742/ELG | Buy part | |
| MAINSPRING 1.60-.185-520 16,5 | MS-JA111 | GR 4680-DBH | Buy part |
| STAFF, THIN 12S P10 | 22BB/12 | 4177/ELG | Buy part |
