Gruen 216SS
Ligne: 12'''
Jewels: 17
Power Reserve: 41 hrs
Frequency: 18000 vph
Type: Manual Wind
Period used: ~1945
Diameter: 27.5 mm
Height: 3.9 mm
Hands: 1.60 x 0.78 / 0.20 mm
Base: Lemania 3000

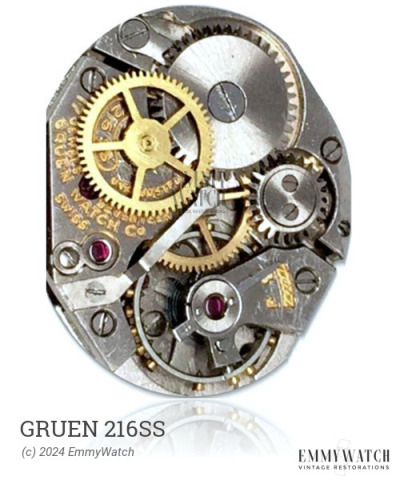

The Gruen 216SS watch movement is a manual wind mechanism with a sub-second function. It shares similarities with the Lemania 3110 movement, although the specific differences between the two are not known. The Gruen 216SS movement was used during the approximate period of 1945.
The Gruen 216SS features the following functions:
- Manual Winding
- Sub Second
Balance Staff Listing
| Ronda Reference # | Shock System | Buy |
|---|---|---|
| 1536 | Ordinary/None | Buy staff |
| 3885 | Incabloc | Buy staff |
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.30 x 0.105 x 360 x 10.5 mm | GR3271 | Manual | Buy mainspring |
| 1.30 x 0.120 x 320 x 10.5 mm | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|
