Gruen 216
Ligne: 9.75'''
Jewels: 15
Power Reserve: 40 hrs
Frequency: 18000 vph
Type: Manual Wind
Diameter: 22.05 mm
Height: 3.8 mm
Hands: 1.20 x 0.55 / 0.18 mm

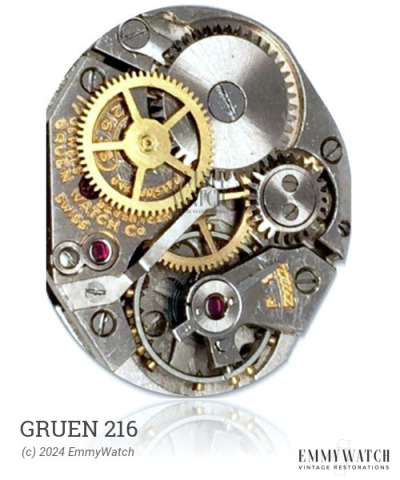

The Gruen 216 is a mechanical watch movement, belonging to a series of movements labeled 40 through 49, that is used for manual winding watches and features a sub-second function. Further details regarding the specific differences between these movements are not currently known.
The Gruen 216 features the following functions:
- Manual Winding
- Sub Second
Mainspring Listing
| Dimensions | GR Reference # | End Type | Buy |
|---|---|---|---|
| 1.60 x 0.100 x 250 x 8.5 mm | Manual | Buy mainspring | |
| 1.60 x 0.105 x 240 x 8.5 mm | GR4500 | Manual | Buy mainspring |
Incabloc Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
KIF Part Listing
| Block # (Top/Bottom) | Cap Jewel # (Top/Bottom) | Spring # (Top/Bottom) |
|---|
Documents
Parts Listing
| Part Description | Reference # | Alternate | Buy |
|---|---|---|---|
| MAINSPRING 1.60-.11-266 | MS-710H | Buy part | |
| PALLET ARBOR | 72S/97P | 714/AS 1049 | Buy part |
| ROLLER 200X90X42 | 82S/74R | Buy part | |
| SCREW, CROWN WHEEL | 5420/310 | 5423/PES 20-24- | Buy part |
| SCREW, RATCHET WHEEL | 5415/279 | Buy part | |
| STAFF | 100/618 | Buy part | |
| STAFF, INCA | 100/1631 | Buy part | |
| STEM | 200/120F | Buy part |
